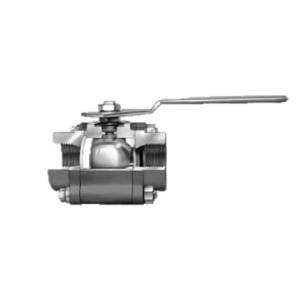

SERIES 59
Features
• 3 Piece Full Port Ball Valve:
• ASME class 600 design
• Meets ASME B16.34 requirements (consult Pressure/Temperature Charts)
• “Live loaded” stem seal
• Multiple soft and metal seat options
• Tight Shut off and Bi-Directional Sealing
• Cavity Filled Designs
• Full Port design minimizes pressure drop across the valve and maintains a high efficiency,reducing pumping cost.

Sizes
• ¼˝ - 4˝
• Screwed end
• Socket weld
• Butt weld

Materials
• Carbon Steel
• Stainless Steel

Standards
• ASME B16.34
• S.E. to ASME B 2.1
• S.W. to ASME B 16.11
• API 607 Fire Test

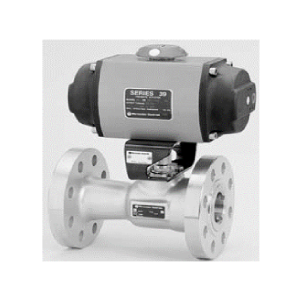

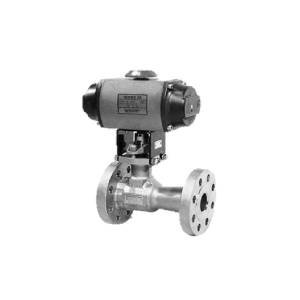

SERIES 51/52
Features
• Flanged Unibody Design
• ASME class 150/300
• Tight shut-off
• “Live loaded” stem seal
• Multiple soft and metal seat options
• Wide variety of Body, Seat and Seal materi als means dependable, high cycle control on Steam, Petroleum products, Chemicals and abrasive liquids
• Pre-drilled mounting holes for actuation
• Tight Shut off and Bi-Directional sealing
• Cavity Filled Designs

Sizes
• 1/2˝ - 10“ Flanged
• ASME 150# and 300# class

Materials
• Carbon Steel
• Stainless Steel

Standards
• ASME B16.34
• API 607 Fire Test

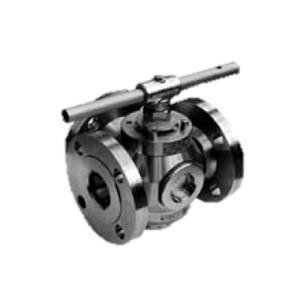

Series D44/D4, D51, 18/19
Features
• Multi-port Diverter Valves
• Three-piece or flanged design
• Bottom entry or side entry
• Full port or standard port
• 90 or 180 degree operation
• The D51 cast flanged have similar operations as the D44/D4 but for larger sizes
• The D44/D4 3-piece diverter valve is designed to accept media through a bottom inlet port and direct it to either of two outlet ports
• ASME 150 flanges
• The 18/19 Series is extremely adaptive
. Up to 5 ports
. multiple seat and body materials
. standard or full port
. Optional fugitive emission design
. Class 150 or 300
. Screwed, socket or butt weld and slip-on flanges

Sizes
½˝ - 2˝ for D44/D4 3-piece valve
For 2˝ - 8˝ for D51 Flanged valve
1˝ - 6˝ for Series 18 & 19 valve

Materials
Carbon Steel
Stainless Steel

Standards
ASME B16.34
API 607 Fire Test

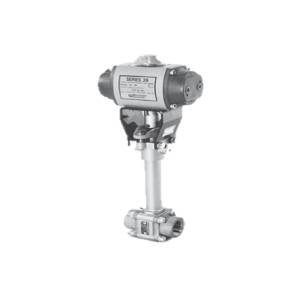

Series 94, 94-150, 94-300, 94-600
Features
• Specially designed to control and minimize fugitive Emissions.
• Outstanding performance on high-cycle applications, where no stem leakage is allowed
• Double „live loaded“ Stem seal design
• High Vacuum capability
• High cycle capability
• Suitable for Category M services
• Pressure classes to ASME 600

Sizes
• ½˝ - 2˝ 3 piece design
• Screwed end
• Socket weld
• Butt weld
• ½˝ to 8˝ Flanged design

Materials
• Carbon Steel
• Stainless Steel
• Hastelloy-C trim option

Standards
• ASME B16.34
• S.E. to ASME B 2.1
• S.W. to ASME B 16.11
• API 607 Fire Test

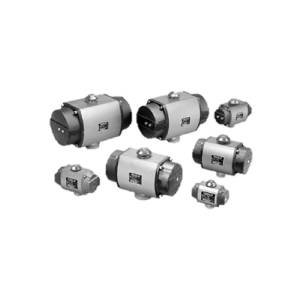

SERIES 39 PNEUMATIC ACTUATOR
Features
• High Performance,High Cycle Design
• Two-Year warranty
• Twin piston, double rack & pinion
• Extruded, anodized aluminum body
• NAMUR, ISO mounting
• Polished stainless steel guide rods
• Multi-spring force transfer
• Dual male output shafts
• End cap air supply ports
• End mount solenoid/switch accessories Torque Range
•Up to 60,000 in-lbs @ 120 psi inputTemperature Range
• -40 F to 212 F; (high temp option 300F)

Pressure Range
• 30-120psi DA, 40-120psi SR

Standards
• Type1, 4, 4x
• Class1, Div1, Groups A,B,C,D

Applications
• Chemical, Petrochemical & Refining,
• Power, Oil & Gas, Food & Beverage

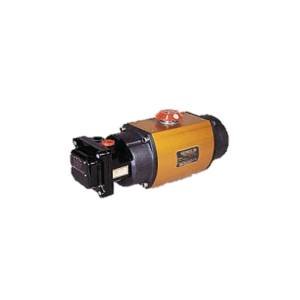

SERIES ELK39 END MOUNT POSITION SWITCH
Features
• Integral solenoid & position switch
• Single electrical connection
• High flow spool valve
• Manual override and speed control
• No mounting brackets
• Diagnostic LED circuit board
• Digital Fieldbus networks Enclosure
• Die cast aluminum, epoxy coated

Standards
• Type 4, 4X; U.L.; CSA approved
• Class1, Div1, Groups B,C,D
• Class1, Div2, Groups E,F, G
• Intrinsically Safe, NRTL/C approved Position Switch
• SPDT/DPDT, Gold Contact, Proximity

Temperature Range
• 0 to 160 F

Switch Ratings
• SPDT - 15 Amp, 24,120,240 VAC; 1/2A, 24VDC
• DPDT - 10 Amp, 24,120,240 VAC; 1/2A, 24VDC
• I.S.- (Gold Contacts), 1 Amp, 120 VAC, 1 Amp, RES (0.5A IND) 24 VDC
• Proximity Sensor - (5-200mA, 20-140VAC 10-140VAC, UL listed, CSA Certified)

Applications
• Digital Fieldbus Netowrks, Chemical,
• Petrochemical & Refining, Oil & Gas,
• Food & Beverage, Pharmaceutical
