Kammer

Kammer was founded in 1966. Kammer valves are engineered and manufactured for especially tough applications. More than half of all Kammer valves are custom designed. Custom applications often do not require additional time or cost due to the versatility and interchangeability of the Kammer design.

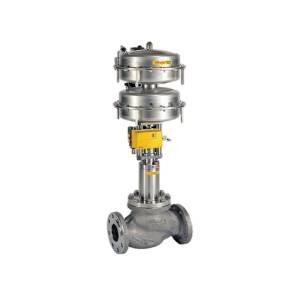

TotalFlow 35000
A flexible, versatile control valve with multiple options, including special material, higher pressure classes, and end connection variations.

Features
• Excellent performance in severe applications with a large degree of flexibility
• Anti-noise, anti-cavitation, hardened trim options
• Bellows seal, TA-Luft packing

Specifications
• Valve Type: Linear Globe
• Size: DN 25 to DN150; 1" to 6"
• Pressure: PN 10 to PN 40
• Material: Carbon Steel; Stainless Steel; Special Alloys
• Temperature: -196°C to 650°C; -321°F to 1202°F

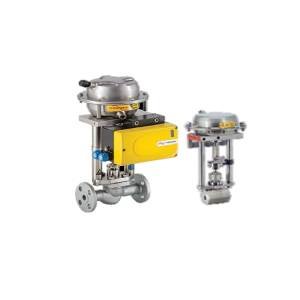

SmallFlow 385000 and 080000
Tight precise control for ultra-low flow ranges. These products are widely used for applications in laboratories and industrial research departments, as
well as industrial processes requiring high degrees of control accuracy.

Features
• Compact microflow control valves with Cv values from 0.000063 to 4.7
• Optional microflow control valves Cv values from 0.0000012 to 0.01
• Special end connections available

Specifications
• Valve Type: Low Flow/Micro Flow
• Size: DN 6 to DN 25; ¼" to 1"
• Pressure: PN 40 to PN 400; Class 150 to 2500
• Materials: Stainless Steel; Carbon Steel; Special Alloys
• Temperature: -200°C to 400°C; -328°F to 752°F

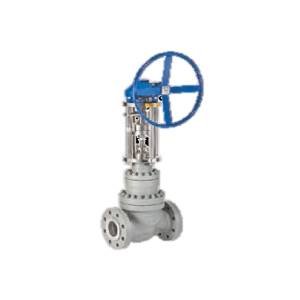

Multi-Z
Handles high-pressure drop applications where entrained solids and cavitation are a problem. Designed for dirty service applications with excessive noise, cavitation, erosion, and high-pressure drops.

Features
• Trash tolerant design accommodates very high-pressure drops with precision control and durability
• High rangeability with balanced or unbalanced trim design
• Extremely durable due to seat being shielded from high velocities

Specifications
• Valve Type: Linear
• Size Range: DN 25 to DN 250; 1" to 10"
• Pressure: PN 40 to PN 400; Class 300 to 2500
• Body Materials: Carbon Steel; Stainless Steel; Special Alloys
• Temperature Range: -30°C to 650°C;
-22°F to 1202°F

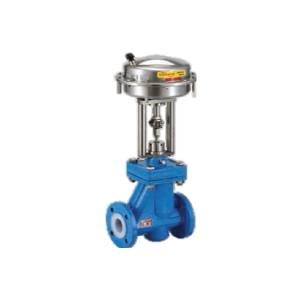

LinedFlow 132000
Offers a wide range of options for lined valves and is specifically designed for service in corrosive fluids, including gases and liquids.

Features
• Thicker, high quality PFA liners provide greater durability in highly corrosive service applications
• Standard PN 16 bellows seal coupled with anti-blowout stem design significantly increases safety and improves emissions

Specifications
• Valve Type: Corrosive
• Size: DN 15 to DN 150; ½" to 6"
• Pressure: PN 16; Class 150
• Materials: Lined PFA; Lined PFA Conductive
• Temperature: -10°C to 200°C; 14°F to 392°F

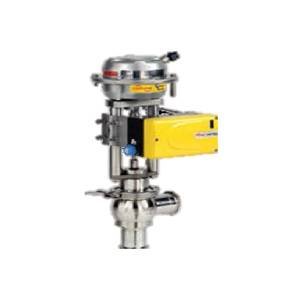

CleanFlow 191000
Specifically designed for applications in the food and beverage industry as well as biotechnology, pharmaceutical, and other similar facilities where optimal cleanliness and sterile valves are required.

Features
• Meets USDA and 3A requirements and can be supplied for Clean In Place (CIP) and Steam In Place (SIP)
• One body with different bonnet and numerous end connection options for various applications

Specifications
• Valve Type: Sanitary/Aseptic
• Size: DN 10 to 100; 0.38" to 4"
• Pressure: PN 10 to PN 25; Class 150
• Materials: Stainless Steel
• Temperature: -25°C to 130°C; -13°F to 266°Fa

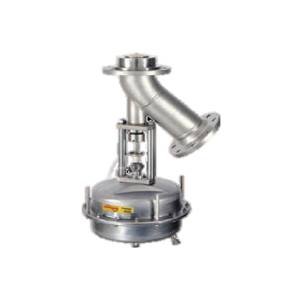

DrainFlow 051000
The result of years of experience in developing special control valve features and application dedicated products. This valve meets exacting requirements for both on/off and control-on-tank drain applications.

Features
• Various designs and materials with extending or retracting plug designs
• High-pressure options available with or without bellows, steam jackets, and other options

Specifications
• Valve Type: Tank Outlet
• Size: DN 15 to DN 150; ½" to 6"
• Pressure: PN 10 to PN 40; Class 150 to 300
• Materials: Stainless Steel; Special Alloys
• Temperature: -30°C to 250°C; -22°F to 482°F
