Automax

Automax was founded in 1984. Automax valve automation systems provide full-service valve and damper automation to the worldwide oil and gas, pulp and paper, chemical, processing and energy-related industries.

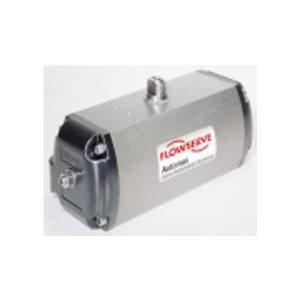

SuperNova S Series
Features
• Aluminium alloy body, internally and externally hard anodised.
• End caps, oven-treated with ultra-thick epoxy coating.
• Fully field reversible for altering spring failure mode.
• Piston guide bearings with wide contact surfaces, increased efficiency and cycle life.
• Independent open and closed adjustment (standard across S050-S200) is indispensable where finite adjustment or limited rotation is required.
• Working temperatures to cover from -50°C to +150°C. Standard -20°C to +80°C.
• The unique design also allows for operation with non-lubricated air.
• Maintanable on site without the need for any special tools.
• Valve and accessory connections according to the latest international standards:

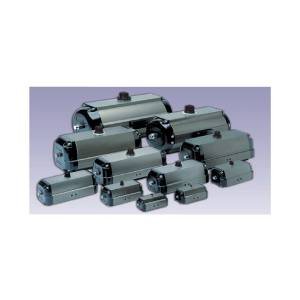

SuperNova B Series
SuperNova B Series Rack and Pinion actuators are designed for butterfly, plug or ball valves, and offer one compact design for double acting and spring return. Precision die-cast pistons with large cylinder bearings increase efficiency and cycle life. Available in torque ranges from 25 to 58,000 in-lbs, for optimum actuator sizing.

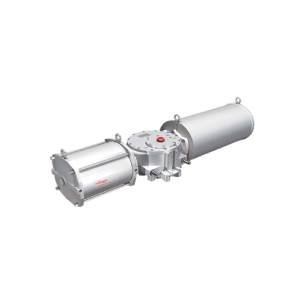

Automax RG Series Heavy Duty Actuator
Double Acting or Spring Return Scotch Yoke Actuator A complete line of Scotch Yoke heavy duty actuators provides torques from 3,000 to 500,000 in-lbs. The combination of Scotch Yoke actuators plus Rack and Pinion actuators offers the opportunity to standardize on one source for your complete quarter-turn automation needs. Scotch Yoke actuators can also be configured with high pressure hydraulic cylinders.

Features
• Pneumatic, Gas and Hydraulic Models
• Double Acting, Spring Return and “Fail-Safe”
• On-Off, Multi-position and Throttling
• Pressure Ranges from 40 to 2500 psi
• Torque Outputs: Standard Design from 1000 to 170,000 in-lbs
• Overrides, Special Controls, Line Break Controls, etc.

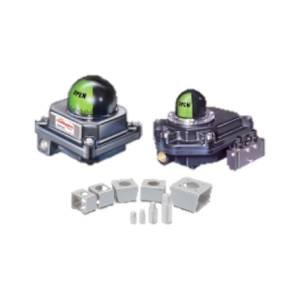

Controls & Accessories
The actuator is the heart of an automation system, but control accessories are important in creating a complete system to meet increasingly sophisticated customer requirements. Solenoid valves and related accessories with NAMUR interfaces provide direct, modular mounting on actuator. Switches, Positioners, Gear Overrides and Lockout Modules can also be integrated into the assembly. AutoBrakits are engineered to assure consistency and proper alignment.
